garbage truck
- Compression tank volume from 6 to 16 Cubic Meter
- Compression ratio: >50%
- Sealed transportation avoid the second time pollution
- Polluted water vent outflow the waste-water
DELI garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water leakage on urban and road areas as it is sealed in transportation. The garbage truck’s tail-gas discharge reaches EUROPEAN standard, which is safe and environmental-protective. DELI garbage truck can be divided into the following series:
- Dump garbage truck
- Swing - arm garbage truck
- Sealed garbage truck
- Hanging bucket garbage truck
- Pull arm garbage truck
- Waste food garbage truck
Carriage of Garbage Truck
DELI garbage truck is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.

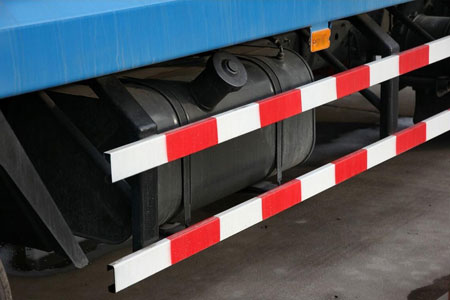

Chassis of Garbage Truck
Cab of Garbage Truck
All the parts of DELI garbage truck are made of high-quality raw material and you can rely on it to make contribution to municipal environment. The garbage truck will be a great aid to you. Feel free to contact us at any time.
| Mode | AYDL- Dongfeng 4x2 Garbage compactor truck | |
|---|---|---|
| Chassis Type | DFA1080SJ12D3 | |
| Engine | Type | CY4102-CE4C |
| Max. Speed (km/h) | 90 | |
| Power | 91kw | |
| Displacement | 3856mL | |
| Emission | Euro IV | |
| Dimensions (mm) | Whole Truck | 7310x2300x2700mm |
| F/R Overhang | 1110/1905mm | |
| Wheelbase | 3800mm | |
| Weight (kg) | Loading capacity | 1500kg |
| Total mass | 8275kg | |
| Performance parameter | Max creeping slope capacity | 28% |
| Oil consumption/100K(L) | 18 | |
| Slope stop for empty vehicle | 20% | |
| Min circle turning Diameter | 16m | |
| Smallest ground clearance | 260mm | |
| Specialized function | Capacity | 6m3 |
| Filling work cycle time | 20-25s | |
| Filling lift time | 6-9s | |
| Filling lift capacity | 8t | |
| Distance between filling mouth’s lowest part and ground | 740mm | |
| discharge time | 18-22s | |
| Max compression force | 12t | |
| Tire | 7.50R16LT | |
| Specific configuration | Compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can can be converted into various special garbage truck according to clients’ requirement. | |
